Description

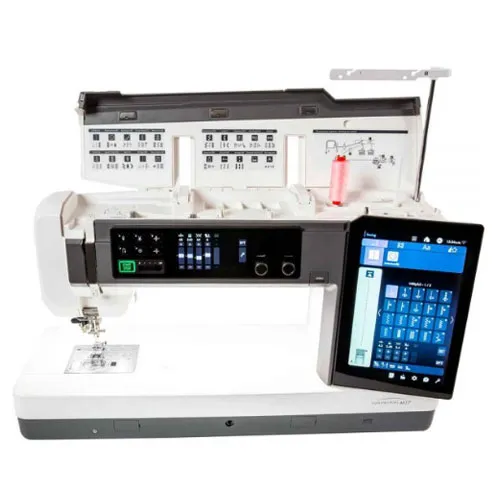

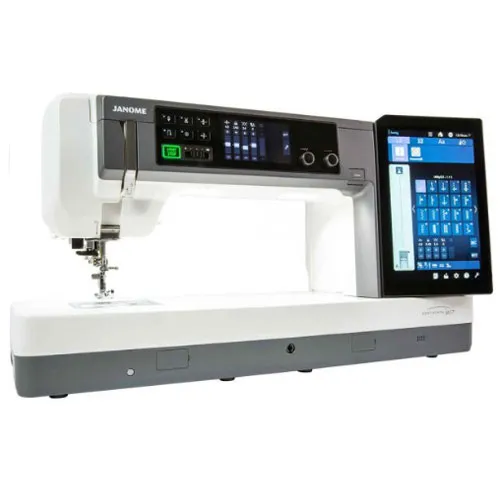

Janome is proud to introduce the Next Generation Combo machine. Combining the top features of our most decorated machines to maximize your creative potential. The largest sewing area in the industry matched the largest embroidery space. High-Definition Quilting, and the Fastest Sewing speeds, are just a few of the 100 reasons to love this new model. The 10″ High-definition color touch screen, plus ergonomically located line of sight screen, make stitch changes and embroidery easy and enjoyable. Introducing new features such as the Thumbwheel function means you can delicately control the needle position to finish those intricate sewing projects.
Over 1,200 built-in embroidery designs and the largest embroidery hoop in the industry at 30″ opens up a whole new world of design capabilities. Five included embroidery hoops to use with built-in programs from monogramming to sashiko and everything in between. Janome original features such as AcuFeed, QuiltBlockAdvisor, and Artistic Digitizer are included. Let the Continental M17 take you to the highest level of your creative abilities.

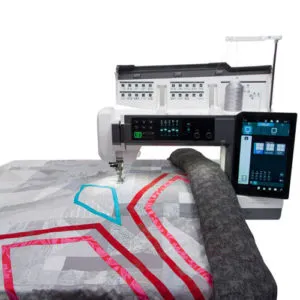

High Definition Quilting
Introducing AcuStitch Regulator (A.S.R.) A Janome first! Our new stitch regulation system comes standard with the CM17 and includes four feet. AcuFeed Flex plus our layered Fabric Feeding System has long been legendary in the sewing and quilting world, so it is no surprise that it is also included in the CM17. Professional Grade Needle plate, HP foot, and HP2 foot for precise topstitching and incredible ease of control & visibility are also standard on the CM17. All of these accessories are easily utilized on the seamless, uninterrupted, all-metal flatbed with 13.5 inches to the right of the needle, 5.51″ of height, and 3.15″ of space above the needle plate.
High Definition Embroidery
Embroidery will never be the same with 1,230 built-in embroidery designs, including designer collections, our largest embroidery hoop ever at 11.3” x 18.2”, created with carbon fiber infused plastic for strength and durability. Wireless embroidery functionality is achieved through AcuAssist, and there is even a Screensaver app to personalize your machine. Features that you have come to know, such as the magnetic hoop, combined with new features such as the easy tightening lever, are like having an extra hand to set your fabric and stabilizer. An embroidery positioning marker uses a laser to show your needle position on the fabric below to see where your needle will strike before stitching begins. All this plus extra storage compartments conveniently located in the extension table arms to store all of your sewing and embroidery accessories.
High Definition Sewing
The Continental M17 Professional combines great convenience features you have come to expect from a Janome machine but also a few industry firsts. The newest feature is the Thumbwheel located to the right of the needle, this allows you to raise or lower the needle without reaching for the handwheel. Boasting 850 built-in stitches including 13 different style buttonholes, plus 3 fonts, give you an incredible amount of options. 9mm zig zag means you have extra stitch width, combined with 91 different needle positions for bolder, more distinctive, and fine-tuned designs. The variable zig-zag provides precise control over stitch width via the knee lifter. The floating mode function will conveniently adjust the pressure to the presser foot while feeding fabric to protect delicate or high pile fabrics like velvet. Other features such as the metal cloth guide which provides a solid guide to achieve perfect hems, and the Automatic Built-in Needle threader are two more extremely useful standard features to allow you to achieve Hi-Definition Sewing.

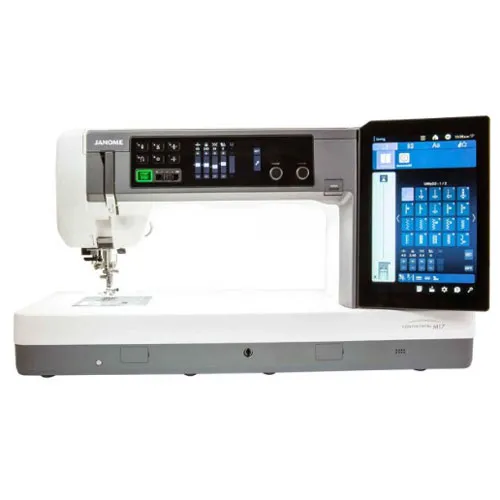

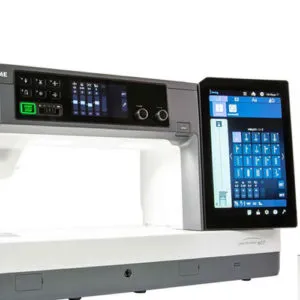

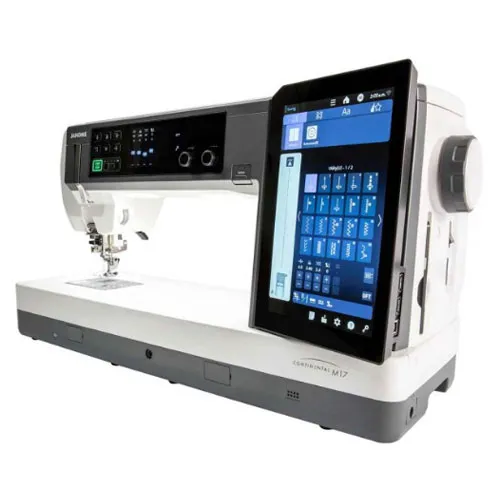

Dual Interactive LCD Touchscreens
The CM17’s dual interactive touch screens allow for the user to easily adjust stitch settings, tension, foot height, plus lock and needle plate functions. Using the large right touchscreen is like working on your favorite tablet. The advanced touchscreen shows all of the information you need to sew with ease. Middle screen is easily accessible to quickly adjust any stitch settings. Right Screen – LCD Full-color touchscreen 5.3” x 8.5” Middle Screen – LCD Touchscreen 3.8” x 2.1”
Ample Work Area and Ergonomic Design
The seamless, heavy-duty powder-coated, all-metal flatbed offers an uninterrupted, large sewing area with 13.5 inches (343mm) to the right of the needle. With a 5.51 inch (140mm) workspace height and 3.15″ of space above the needle plate, you’ll complete any sewing project with ease on the Continental M17.

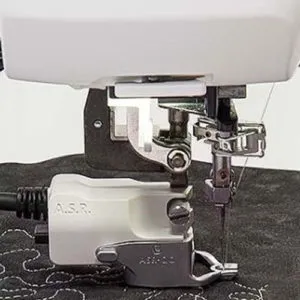

AcuStitch Regulator (A.S.R.)
A Janome first! Our new stitch regulation system comes standard with the CM17 and includes four feet; closed-toe, open-toe, clear view, and the exclusive Ruler Work foot so that all of your free-motion needs are covered. With the added benefit of being able to set the sensitivity of the sensor; you can adjust the Regulation as your skills build.

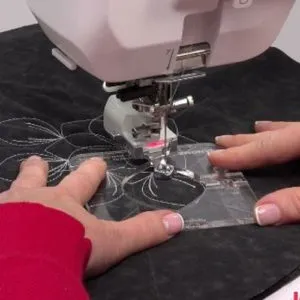

Ruler Work Mode
Expand your quilting options and take advantage of the wide array of precision templates on the market for ruler-guided quilting. Engage the Ruler Work foot to safely follow along the guiding edge of precision cut templates. Achieve beautiful and consistent quilting results previously only available to longarm quilters.

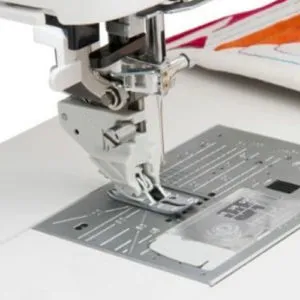

Professional Grade Needle Plate and Feet
Utilize these narrow-gauge industrial-type feet for curves and precise topstitching. They provide excellent ease of control and superior visibility. They are sized perfectly for creating 1/4″ seams, achieving accurate stitches, and perfect starts on any type of fabric.

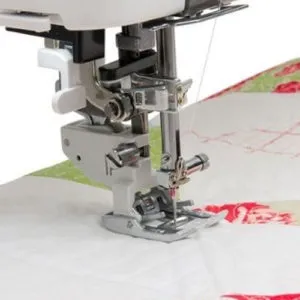

AcuFeed Flex Fabric Plus
Our AcuFeed Layered Fabric Feeding System has long been legendary in the sewing and quilting world for its exceptional precision and power. We’ve taken it to the next level with AcuFeed Flex Plus. The system is still removable, but adding and removing it from the machine has become more advanced, adding another layer of reliability and control. After attaching the AcuFeed foot, touch the AcuFeed icon on your screen to engage or disengage the dedicated motor designed specifically for this feature!

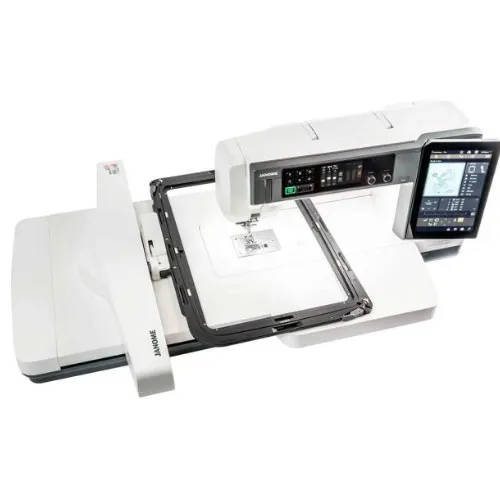

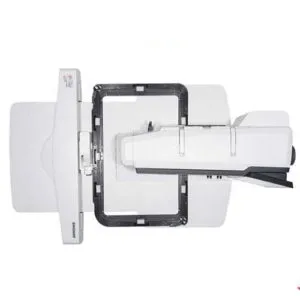

Extra Large Embroidery Area
Our largest hoops and embroidery area ever! Our RE46d Hoop offers 11.3” x 18.2” of the embroidery area. Created with Carbon Fiber infused plastic, this large hoop is 10X stronger than metal! No other machine can offer such a large area and guarantee the stability and precision of Janome embroidery, even when embroidering at speeds up to 1200spm. Four included hoops have been created with a new easy-to-hoop lever system and hoop size detection. Bonus Quilt Kit consists of the AcuFil hoop, an excellent tool for quilting in the hoop.

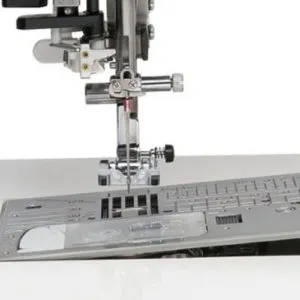

Computerized One Touch Needle Plate
Using the right tools at the right time is essential in sewing. A straight stitch needle plate makes all the difference when using lightweight fabrics or piecing quilts. Our Computerized One Touch Plate Converter allows you to easily switch and use the perfect plate for your sewing project. Push the on-screen button to release the plate and place a new one in place. The M17 comes with three standard needle plates: zigzag, straight stitch, and HP.

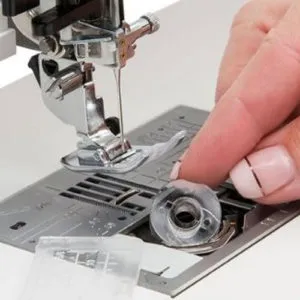

Optical Bobbin Sensor
Our advanced Optical Bobbin Monitoring System is for everyone who has sewn a long seam, only to find that your bobbin thread ran out after the first few inches. Janome Technology allows the M17 to constantly watch your bobbin thread supply while sewing so that you will receive a warning as soon as the bobbin thread gets low, not when it’s too late at the end of your seam. When embroidering or sewing large projects, it is sometimes difficult to track how much bobbin thread is left. The bobbin thread sensor alerts you when your bobbin thread is running low, so you’re never caught in the middle of a seam or embroider color.
Wireless Connectivity
Your options to learn about and use the CM17 are limitless. Use the interactive AcuAssist to become proficient with its intuitive and vast features. With Embroidery Link, you can resize, redesign, and layout embroidery without sitting at your machine. And, with AcuSetter, AcuSketch, and the Screensaver app, you can take the personalization of your machine and embroidery capabilities to the next level.

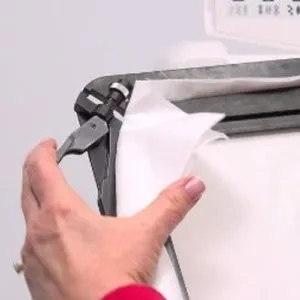

New Easy Tighten Lever
If you found that you sometimes needed a third hand to tighten the screws on embroidery hoops, you’ll love the Easy Tightening Lever! Set your fabric and stabilizer, then flip the lever to lock it into place. One easy step to perfectly taught hooping.

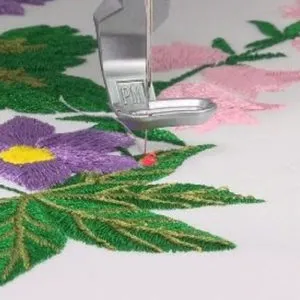

Embroidery Position Marker
Using the newest embroidery foot from Janome, the laser aligning feature can show the position of your needle on the fabric below. This feature lets you see exactly where your needle will strike before stitching begins for extreme precision. Perfect for designs that need to be placed in precisely the correct position. Use the laser with the baste function to ensure your design is exactly where you want it to be.

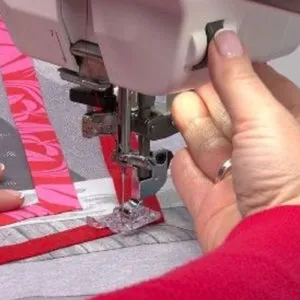

Thumb Wheel
Located to the right of the needle. This industry-first is a great convenience feature that lets you raise or lower the needle without having to reach over to the handwheel.
Product Features:
- 850 Built-in stitches
- 3 Built-in alphabets
- 13 One-step buttonholes
- 11.3″x18.2″ Maximum embroidery area
- 1,230 Built-in embroidery designs
- Embroidery Positioning Marker
- Automatic superior needle threader
- Automatic thread cutter
- Ruler work mode
- 9 Brighter white LED lights
- Top loading full rotary hook bobbin system
- Built-in sewing applications on-screen support
- 13.7″ throat space from right of the needle
- Automatic presser foot lift
- Automatic tension system
- Memorized needle up/down
- Automatic one-touch needle plate conversion
- AcuFeed™ Flex Plus Layered Fabric Feeding System
- Profession HP needle plate with HP and HP2 feet
- Wireless capability
- 7-piece feed dog
- 91 Needle positions
- USB ports
- Drop feed
- Easy Tightening Lever on embroidery hoops
- PC Programs: Stitch Composter, Quilt Block Advisor, Screen Saver
- Design transfer options: Wireless, USB, Direct PC connection
- Auto return post thread break
- Embroidery format: .JEF, .JEF+, .JPX
- Editing functions: Resize, Rotate, Flip, Zoom, Duplicate, Combine, Sewing Order, Single Color Sewing, Color Grouping, Corner Layout
- Variable zigzag for free motion
- Start/stop button
- Locking stitch button
- Twin needle settings
- Easy reverse button
- Three needle plates for sewing
- Advanced needle plate markings
- Adjustable knee lift
- Optical bobbin monitoring system
- Auto-declutch bobbin winder
- Independent bobbin winder motor
- Extra high presser foot light
- Self-opening top cover
- Pop-up vertical spool pins
- Buttonhole foot with stabilizing plate for thick fabrics
- 9mm Maximum stitch width
- 5mm Maximum stitch length
- 1,300SPM Maximum sewing speed
- 1,000SPM Maximum zigzag stitch sewing speed
- Ergonomically designed
- Included 5 embroidery hoops
Included Accessories:
- Zigzag foot
- Overedge foot
- Satin stitch foot
- Blind hem foot
- Zipper foot
- Concealed zipper foot
- Automatic buttonhole foot
- Stabilizer plate
- Roller hem foot
- Open toe satin stitch foot
- Button sewing foot
- 1/4″ Seam foot
- 1/4″ Seam foot (no guide)
- Professional grade foot HP
- Darning foot
- Darning foot (open toe)
- AcuFeed holder (twin)
- AcuFeed foot AD (twin)
- AcuFeed quilt piecing foot OD
- AcuFeed open tope foot UD (twin)
- AcuFeed ditch quilting foot SD (twin)
- AcuFeed professional grade foot HP2
- AcuFeed holder (single)
- AcuFeed foot VD (single)
- AcuFeed zipper foot ED (single)
- Free motion quilting foot (closed toe)
- Free motion quilting foot (open toe)
- Free motion quilting zigzag foot
- Variable zigzag foot (open toe)
- Ruler work foot
- Embroidery foot
- Embroidery couching foot PC-1
- Embroidery couching foot PC-2
- AcuStitch Regulator Unit
- ASR closed-toe foot ASR-QC
- ASR clear-view foot ASR-QV
- ASR open-toe foot ASR-QO
- ASR ruler work foot ASR-QR
- Needle plate – Zigazag
- Needle plate – Straight stitch
- Needle plate – Professional grade HP
- Embroidery hoop RE46d (with template)
- Embroidery hoop SQ28d (with template)
- Embroidery hoop RE20d (with template)
- Embroidery hoop SQ10d (with template)
- Magnetic clamps x 8** (for RE46d and SQ28d)
- Special bobbin holder for embroidery
- Sub thread guide stick
- Felt (320 x 320)
- Felt (500 x 620)
- Stabilizers (320 x 320)
- Stabilizers (500 x 620)
- Bobbin thread for embroidery
- Yarn guide
- Touch panel stylus
- Cloth guide
- Quilting guide bar
- Button shank plate
- Optic magnifier x20
- Optic magnifier x40
- Optic magnifier x60
- Knee lifter
- Bobbins
- Needles
- Lint brush
- Scissors
- Seam ripper
- Screwdriver
- Thread nets
- Spool holders – Large
- Spool holders – Small
- Spool holders – Special
- Spool rests
- Bobbin cleaner
- Semi-hard fabric cover
- Accessory case
- Power cord
- Foot pedal
- Thread cutter switch
- Base plate/Rubber soles
- Setscrews – 4
- Setscrews – 2
- Washer – 2
- Rubber sole – 2
- Instruction manual (web download)
- Instructional video (web download)
